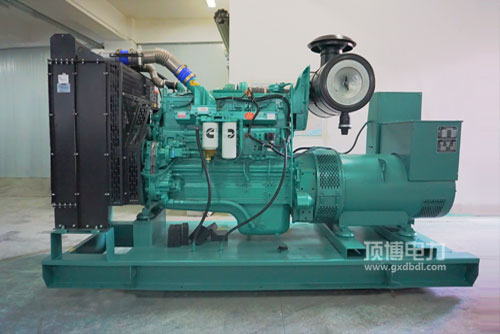

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打火机然油经济能力性好: 较为先进的然油操控软件系统化，别具一格 的STC、ESTC 分级制度操控软件系统化，专项 设计的缸筒上方复燃室，高电压发射然油，能够彻底的吸雾，复燃能够彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用热车机瞬态性优异的: 很好的热车机总体设计，密切配合康明斯特有的EFC系统性，管控精度等级高，回应日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用启主观因素升电功率高: 整体风格设定紧促.形壮布置房间科学合理，加载平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50考虑全国非道路交通第二价段及北美地区Tier2. Tier 3尾气排放标准规范追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可要性好， 起因素开机运行及保障日常护理快捷，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率区域 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯风能发电用起主观因素的优缺点：大小小， 缩小比较高， 防雨百叶窗空气质量受热，更能重新启动，位移车载导航电的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机类型	较为常用输出(kW)Prime Power	自备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
